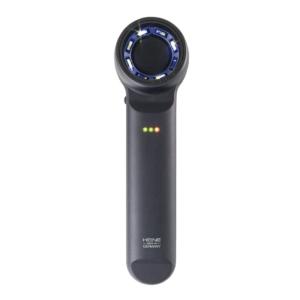

HEINE DELTA 30 Dermatoscope

The HEINE DELTA 30 is a high-end professional dermatoscope combining a large 30 mm field of view, precision HEINE optics and LEDHQ illumination for detailed dermoscopic examination.

Designed for professional skin examination and dermoscopy, the DELTA 30 provides a clear, sharp image with excellent colour rendering. Its ergonomic angled design, large field of view and intuitive controls make it particularly well suited to routine clinical examination.

Key Features

Large 30 mm field of view from a 32 mm lens
10× magnification
Achromatic HEINE optical system for a sharp, detailed image
LEDHQ illumination for excellent colour rendering
Polarised and non-polarised illumination with convenient toggle function
Three selectable illumination intensity levels
Clear image at different working distances
Ergonomic angled design for comfortable handling
Dioptre compensation
Rechargeable Li-ion battery
Autoclavable contact plate with scale
Fast transition between contact and non-contact examination

Precision Optics and LEDHQ Illumination

The DELTA 30 combines HEINE’s achromatic optical system with LEDHQ illumination to provide a sharp image and excellent colour rendering during dermoscopic examination.

Polarised illumination helps reduce reflections and glare, while the toggle function allows convenient switching between polarised and non-polarised illumination. Three selectable light-intensity levels allow the illumination to be adjusted to suit the examination.

Large Field of View

With a 32 mm lens providing a 30 mm field of view and 10× magnification, the DELTA 30 allows clinicians to examine a large area while maintaining detailed visualisation of skin structures.

The optical system is designed to provide a clear image at both closer and greater working distances, while dioptre compensation enables the view to be adjusted to the individual user.

Designed for Clinical Use

The angled design provides comfortable ergonomic handling during examination. The rechargeable Li-ion battery can be charged using the supplied USB charging system, while the optional HEINE Charger 30 provides a convenient table-charging solution.

The standard contact plate incorporates a scale and can be autoclaved. An optional small contact plate is available for examining difficult-to-access areas.

Contact and Non-Contact Examination

The DELTA 30 supports both contact and non-contact dermoscopy and allows rapid switching between examination methods.

The optional HEINE diSTANCE working ring maintains a defined working distance while allowing examination under magnification without the dermatoscope contacting the skin.

Digital Dermatoscopy & Documentation

The HEINE DELTA 30 can be used for digital documentation with compatible smartphones using HEINE smartphone adaptors. HEINE DERManager can also be used for digital image and data management where compatible.

For high-quality camera-based documentation, the DELTA 30 can also be combined with the HEINE SLR | SLM Camera Adapter and compatible DSLR or mirrorless camera systems.

HEINE SLR | SLM Camera Adapter

The HEINE SLR | SLM Camera Adapter provides a professional solution for capturing detailed dermatoscopic images using compatible camera equipment. The system supports high optical resolution and detailed documentation, with the ability to refocus and digitally magnify captured images.

HEINE DELTA 30 Product Literature

Download HEINE DELTA 30 dermatoscope literature »

HEINE DELTA 30 Video

Ordering Information

Product	HEINE Product Code
HEINE DELTA 30 Dermatoscope with contact plate with scale, USB power supply and case	K-230.28.305

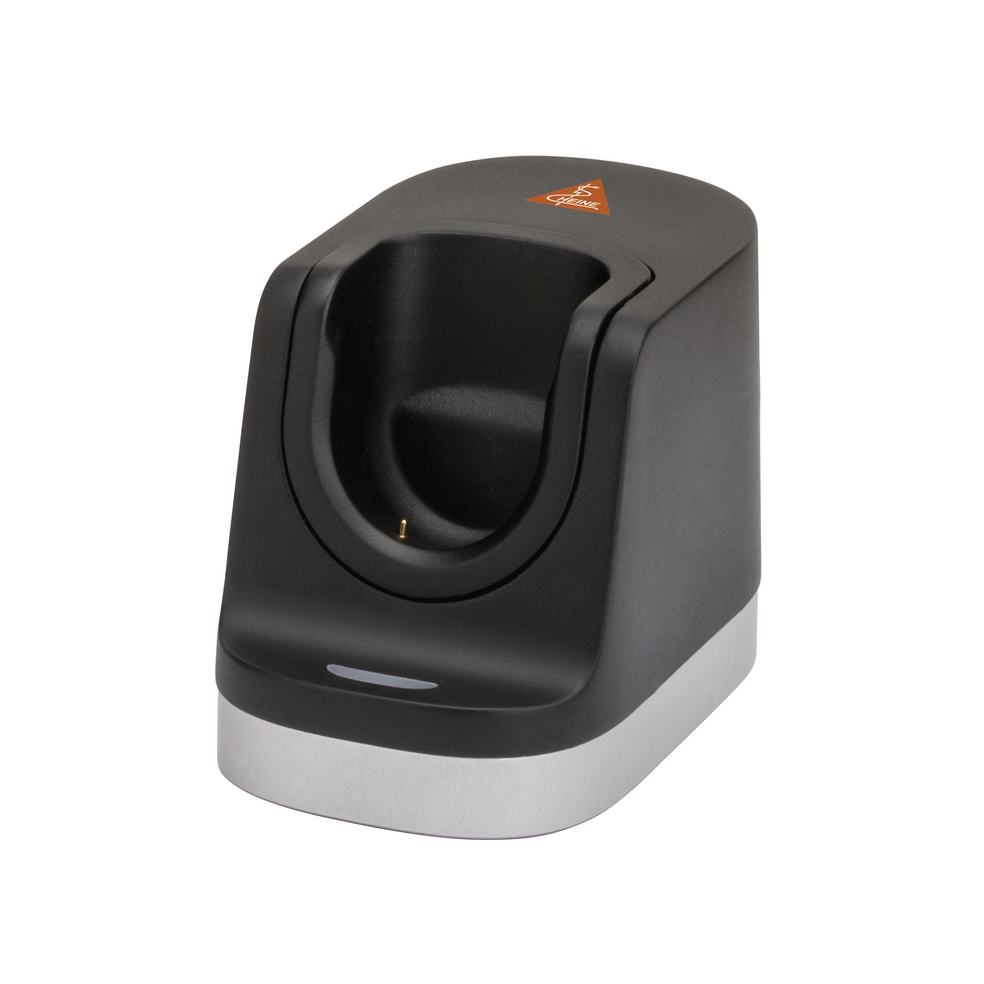

Charger 30 Table Charger	X-002.99.212
Contact Plate with Scale	K-000.34.220
Small Contact Plate	K-000.34.206
HEINE diSTANCE Working Ring	K-000.34.103

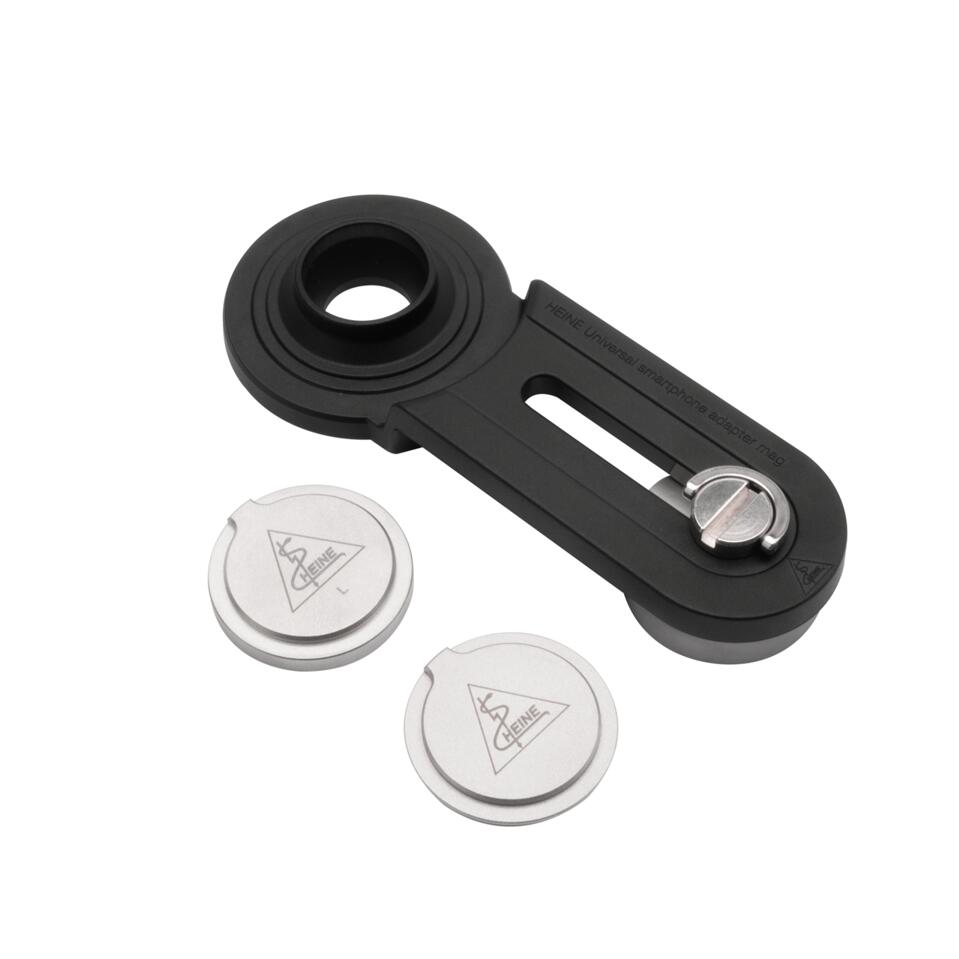

Universal Smartphone Adaptor MAG for DELTA 30 / DELTA 30 PRO / DELTAone	K-000.34.273
Replacement Fixing Button for HEINE Smartphone Adaptor	K-000.34.274

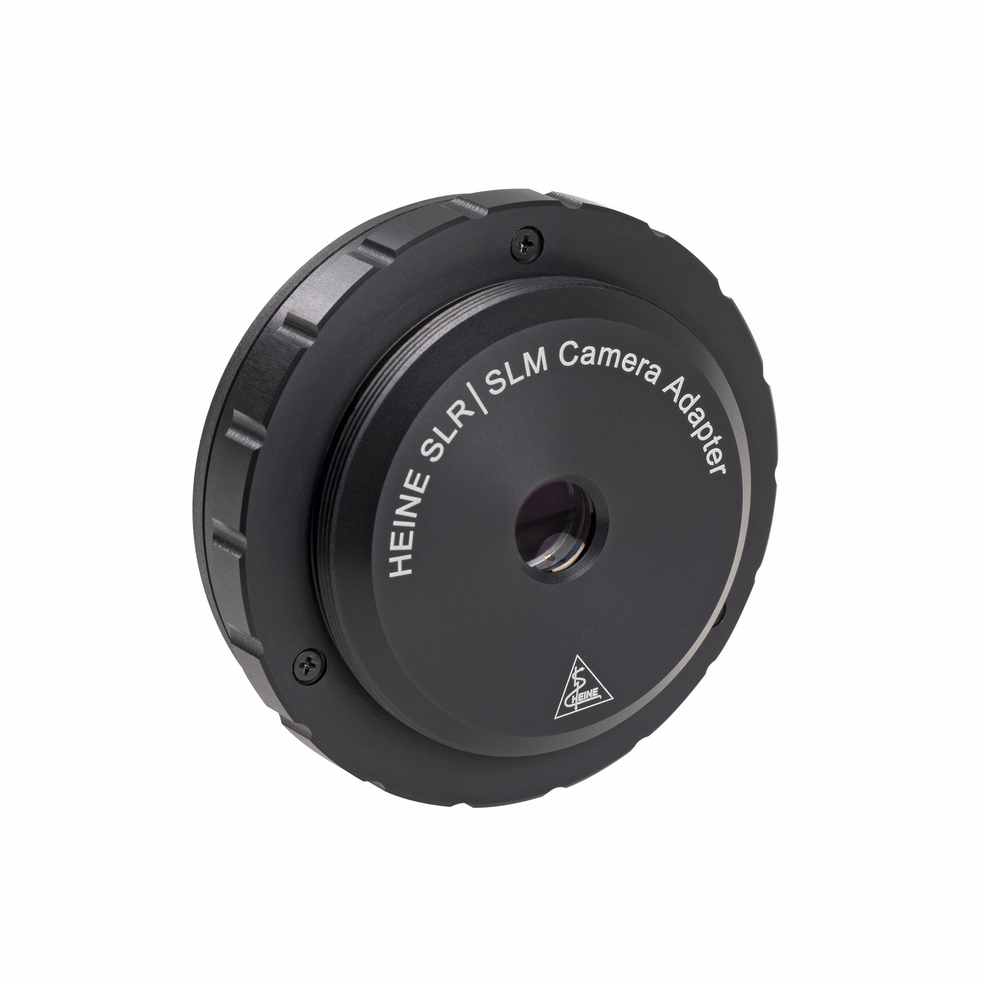

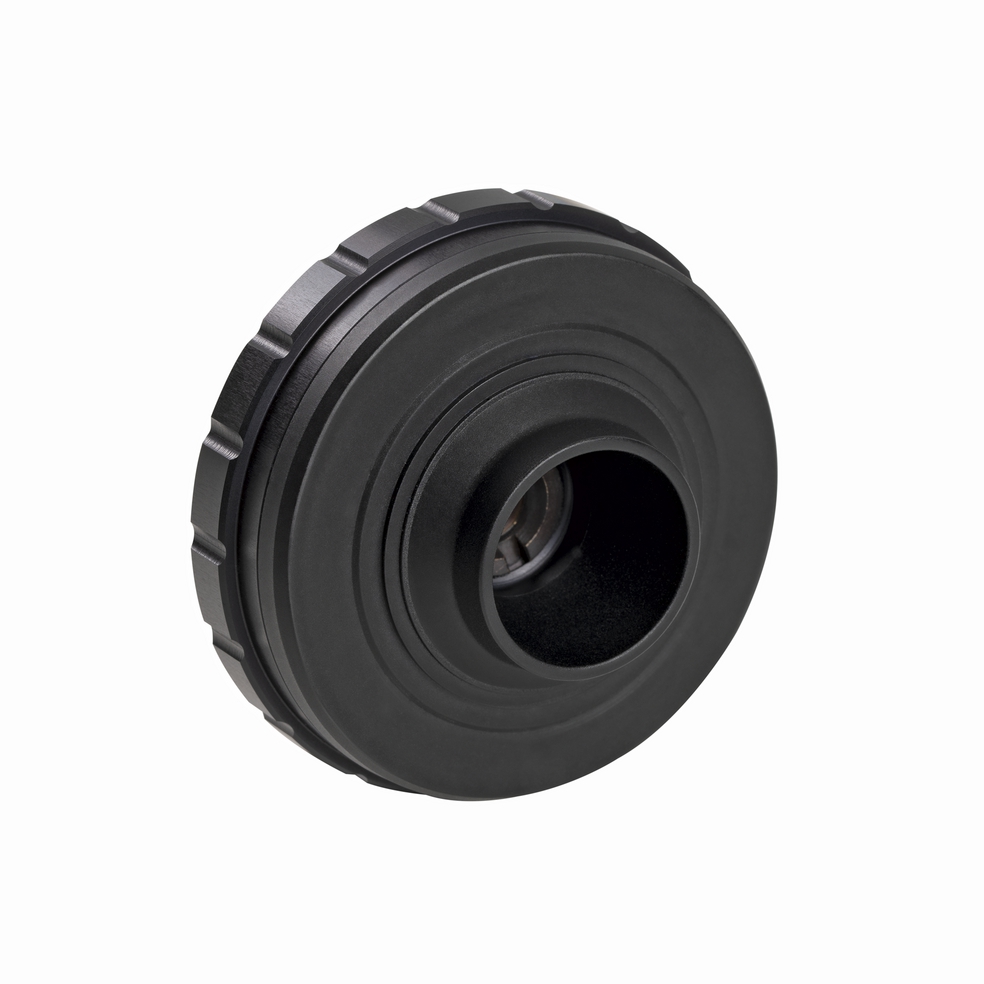

Universal SLR \| SLM Camera Adapter	K-000.34.140

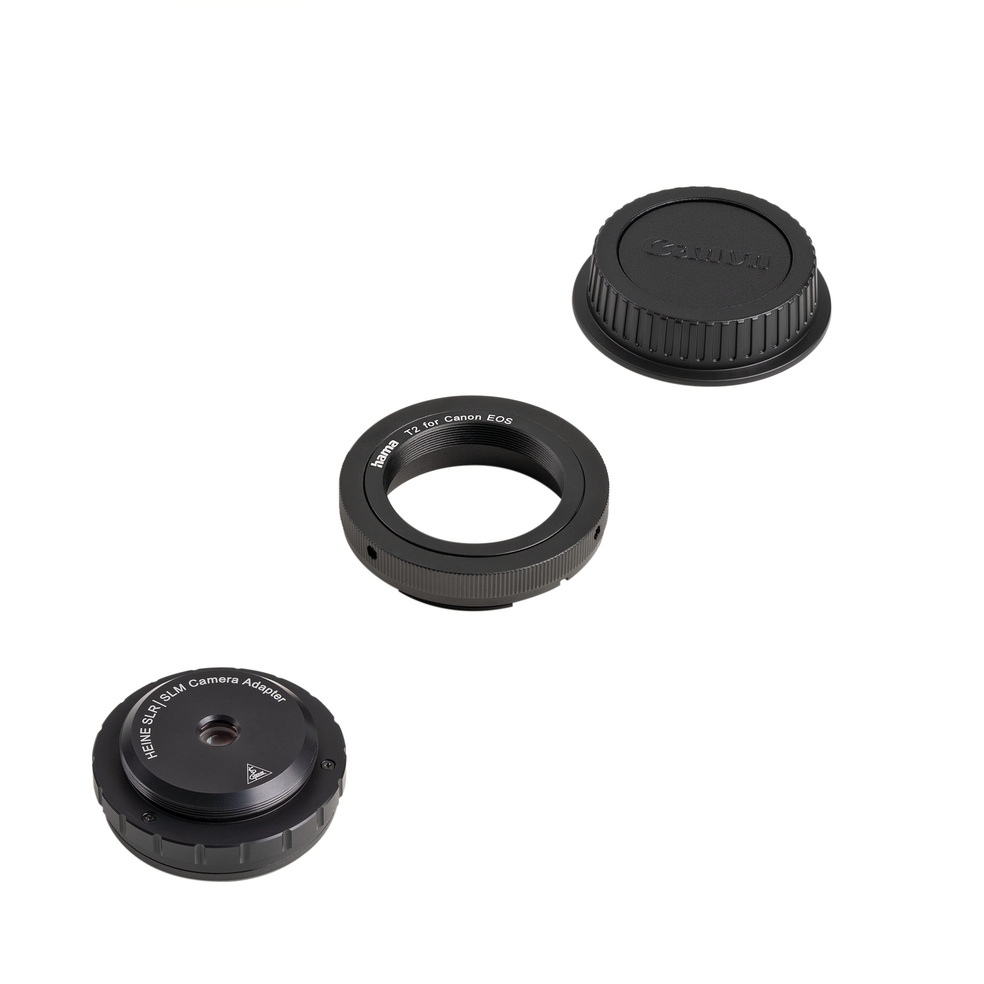

Canon EF(S) SLR Camera Adapter	K-000.34.141

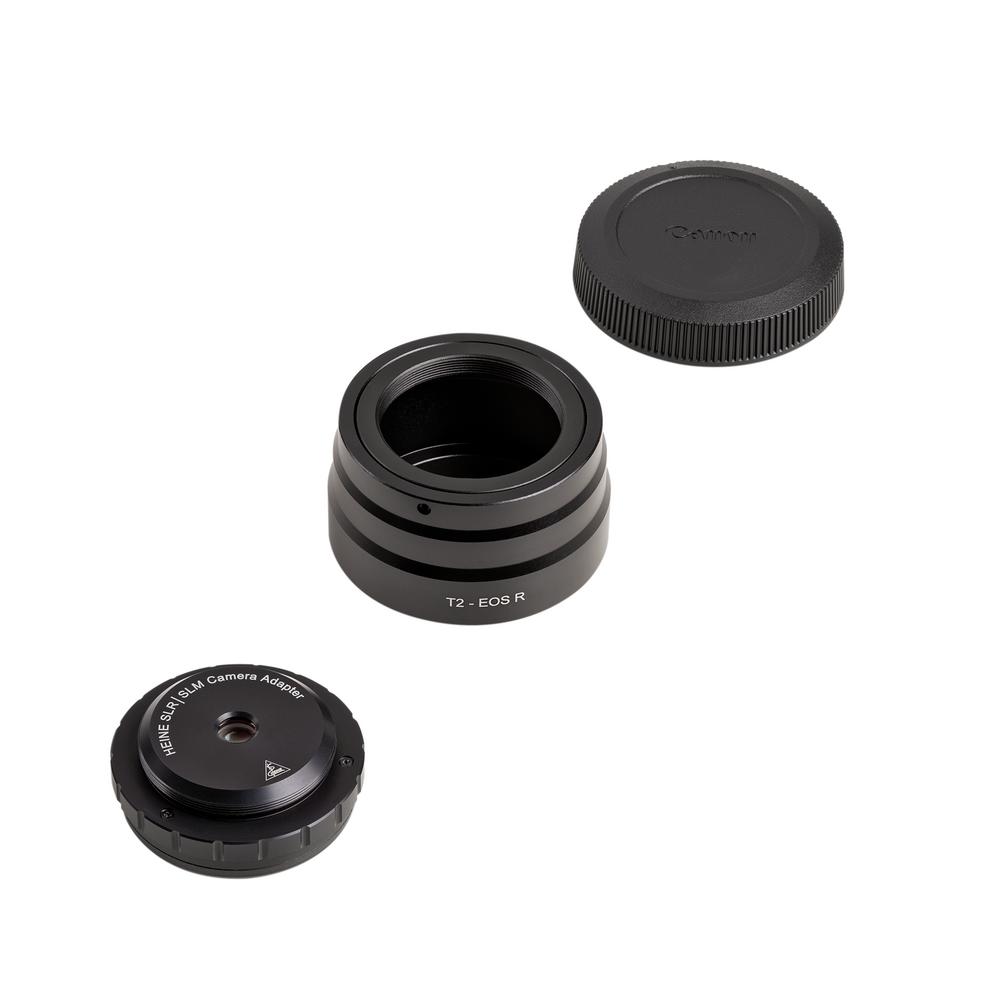

Canon R(F) SLM Camera Adapter	K-000.34.142

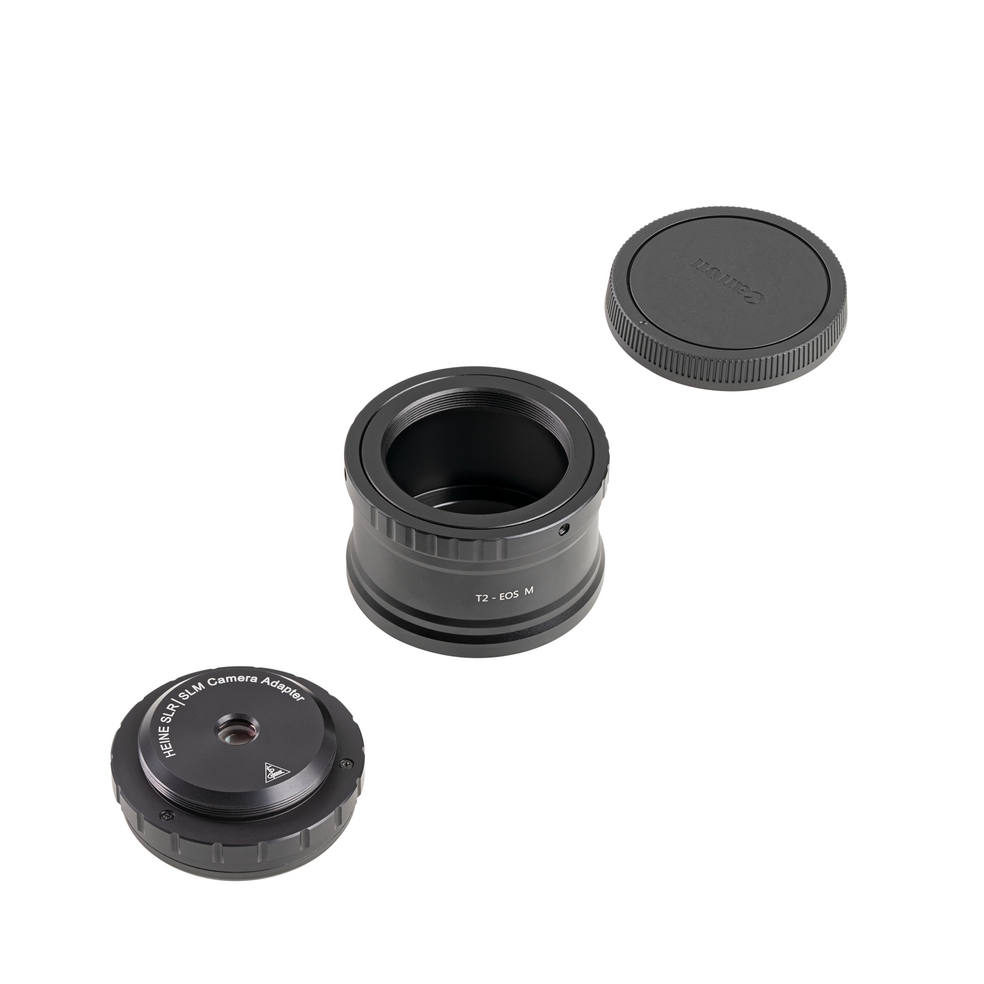

Canon M SLM Camera Adapter	K-000.34.143

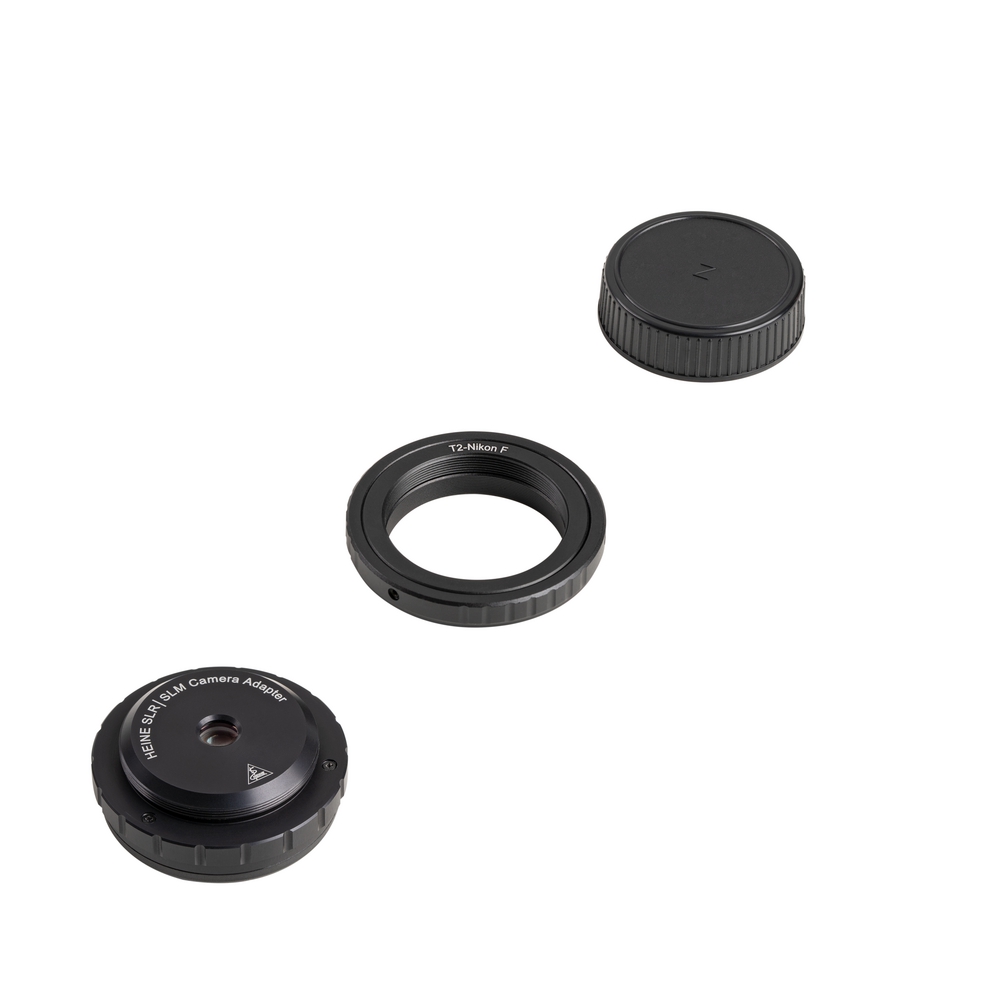

Nikon F SLR Camera Adapter	K-000.34.144

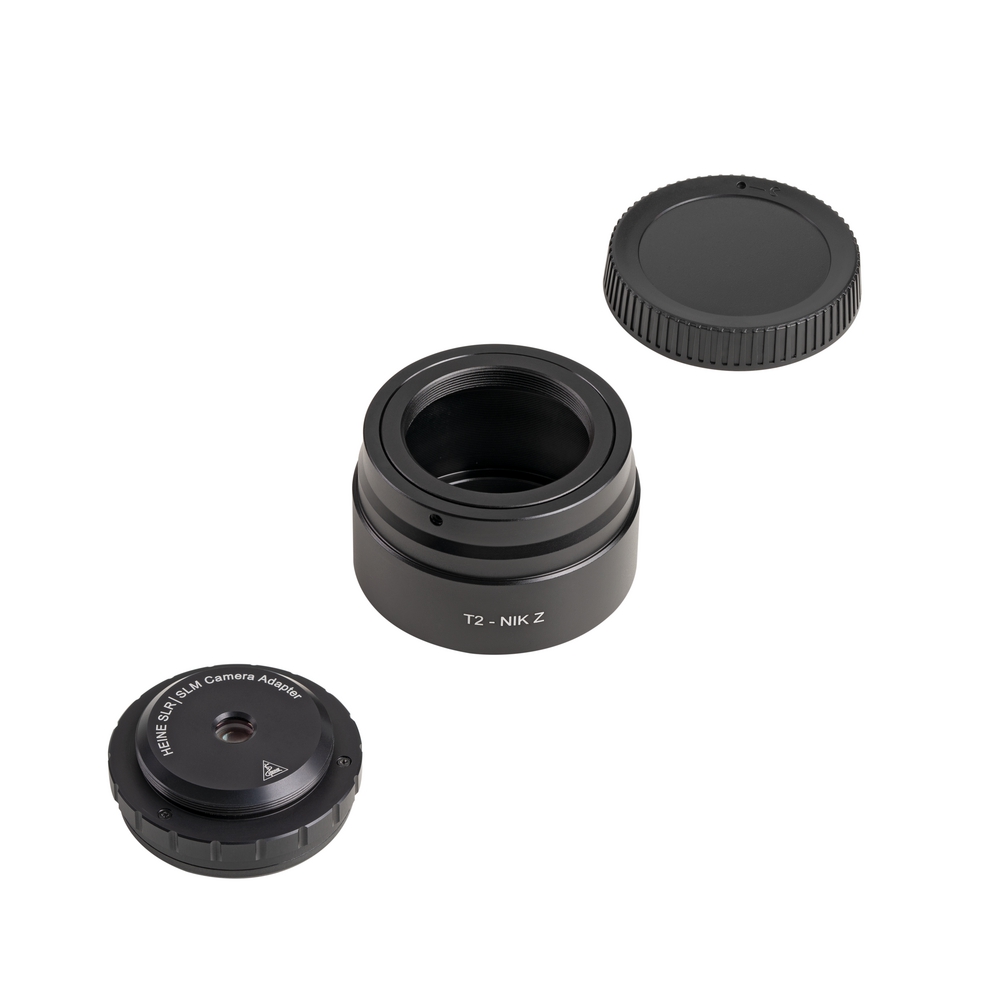

Nikon Z SLM Camera Adapter	K-000.34.145

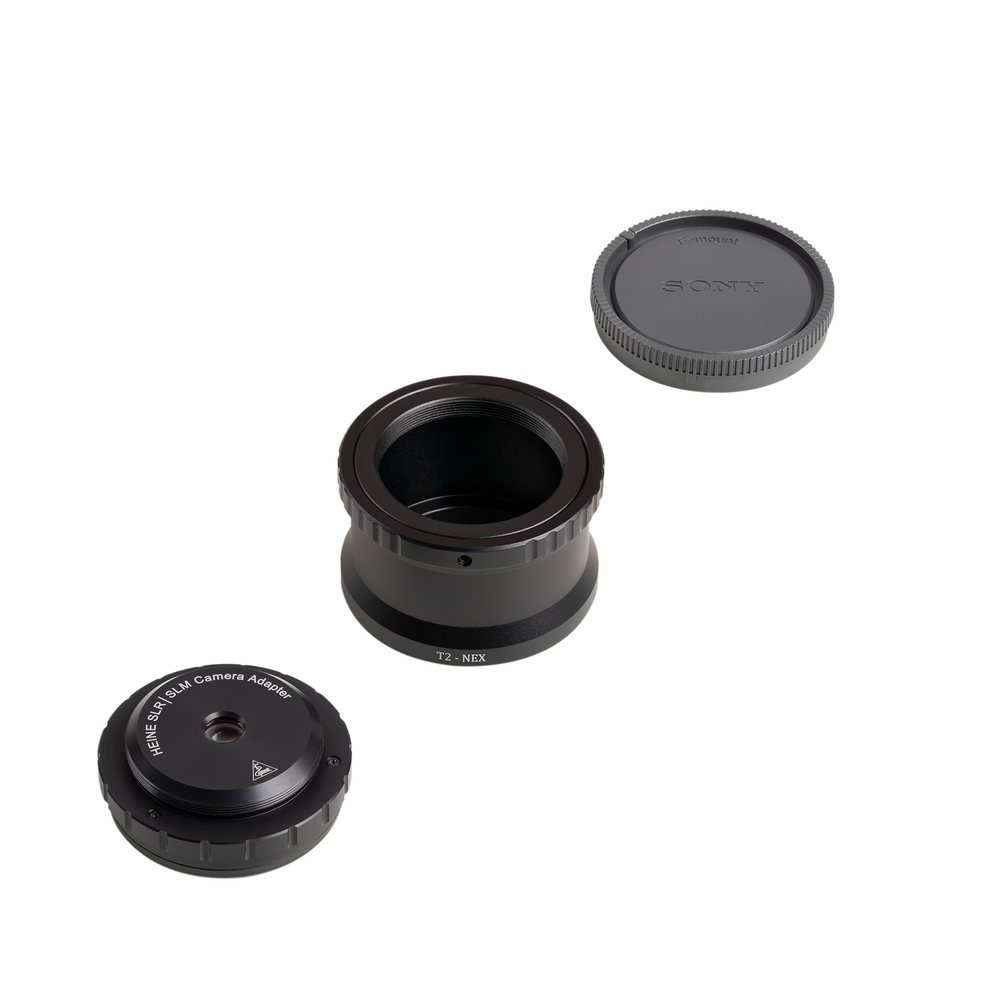

Sony E SLM Camera Adapter	K-000.34.146

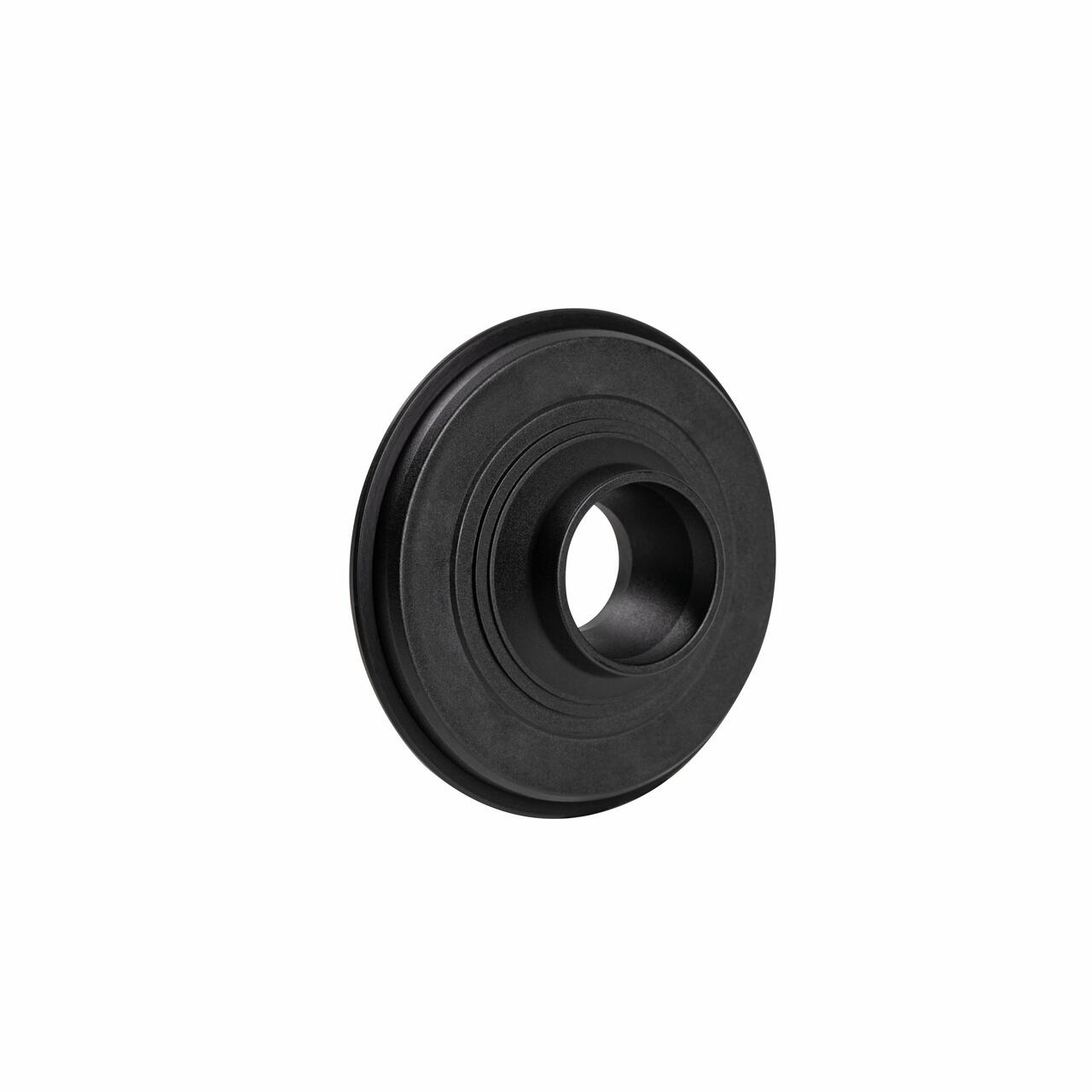

HEINE SLR \| SLM Camera Adapter flow – M49	K-000.34.147

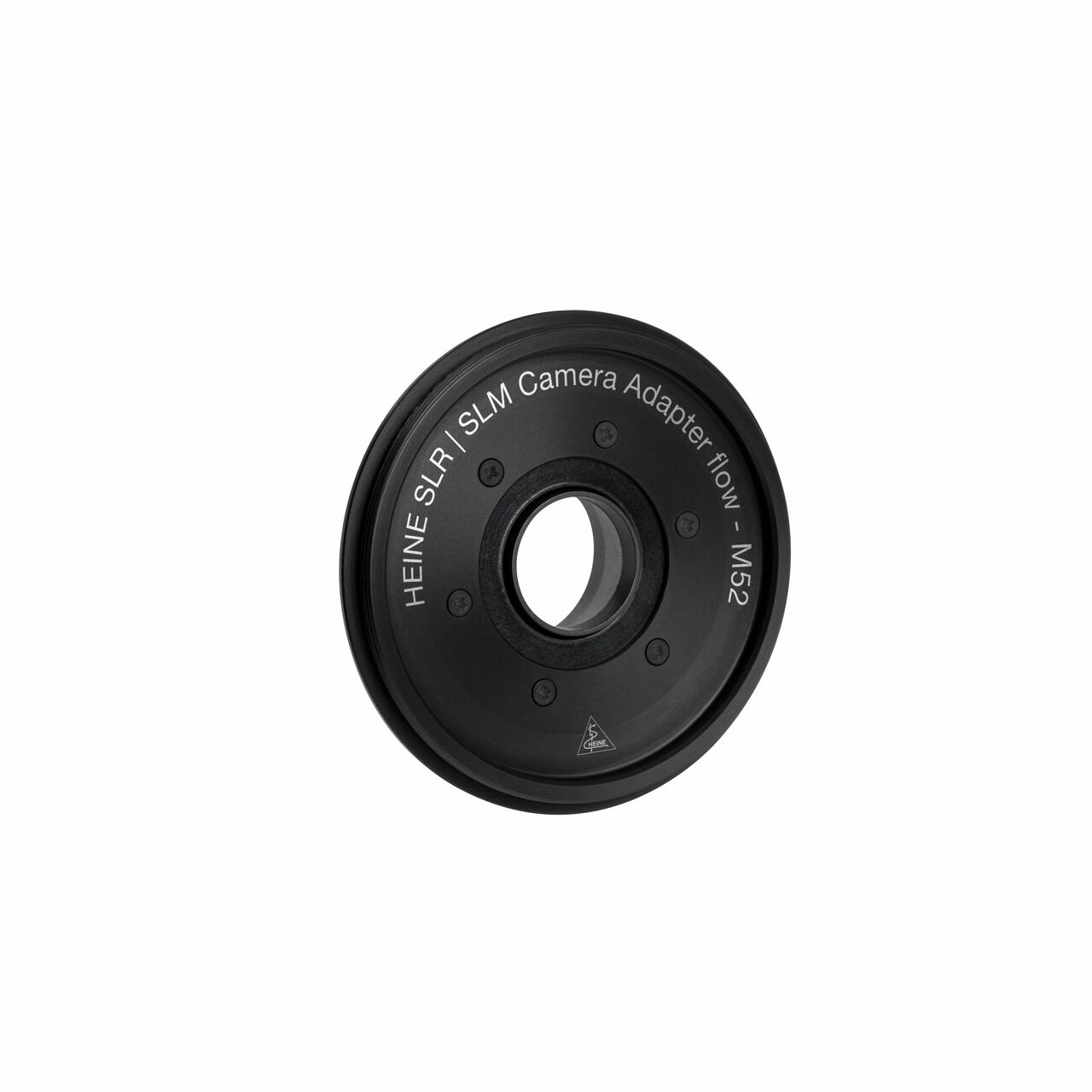

HEINE SLR \| SLM Camera Adapter flow – M52	K-000.34.148
Belt Case for DELTA 30 / DELTA 30 PRO	K-230.01.000

Online ordering: The HEINE DELTA 30 and selected accessories are available to purchase online from Henleys Medical Supplies. View the HEINE DELTA 30 and available accessories online »

For other configurations, accessories, NHS orders or quotations, please contact Henleys Medical Supplies.

6 Year NHS Warranty from Henleys

Henleys Medical Supplies offers a 6 year warranty on HEINE dermatoscopes supplied to NHS Acute Trusts – an additional year beyond the standard 5 year warranty.

Henleys can also provide product demonstrations, training, technical support and after-sales assistance for HEINE dermatoscopes.
